1 year old Boxer

December 29, 2014 By Allison Zwingenberger

To round out the year, we have an ultrasound case for you to look at. It’s a 1 year old Boxer with polyuria and polydipsia. Take a look and post your interpretations in the comments section.



01-us1_1_copy 02-us1_2_copy 03-us2_3_copy 04-us2_10_copy 05-us1_0_copy 06-us1_3_copy 07-us1_4_copy 08-us2_6_copy 09-us1_5_copy 10-us2_8_copy 11-us2_7_copy 12-us1_6_copy 13-us2_5_copy 14-us2_0_copy 15-us2_1_copy 16-us2_4_copy 17-us2_9_copy



Show findings...

Findings

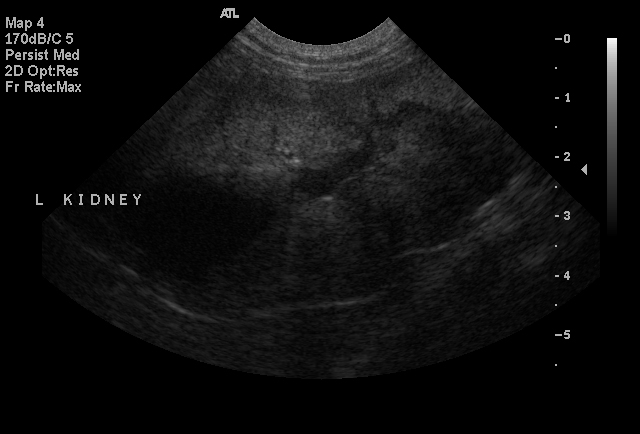

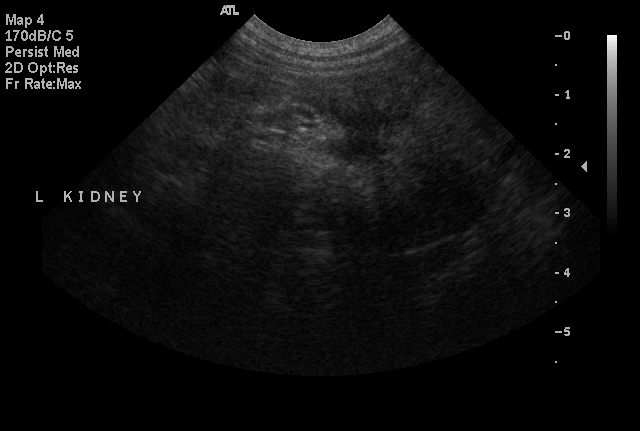

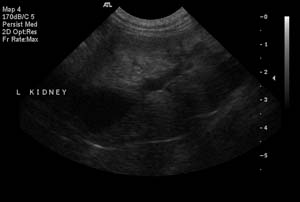

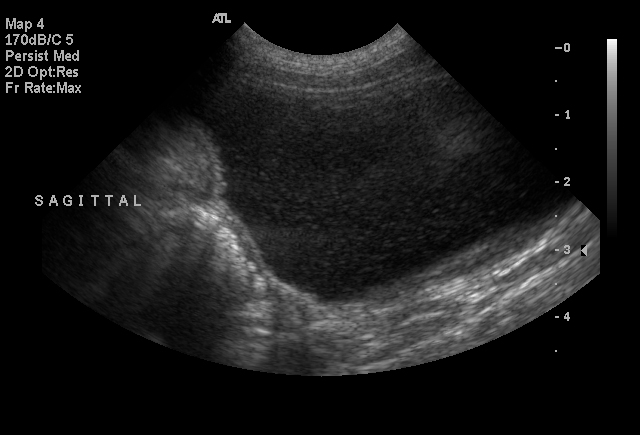

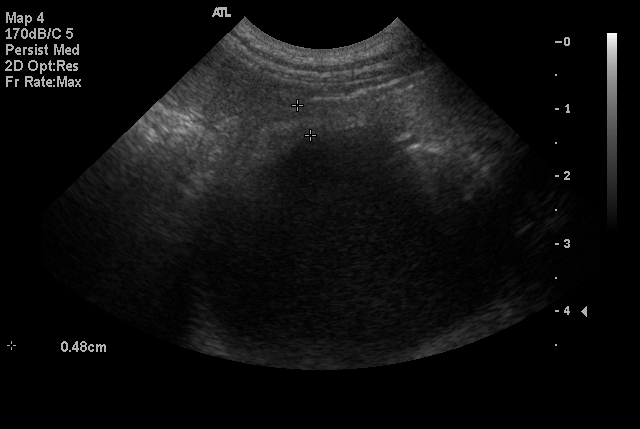

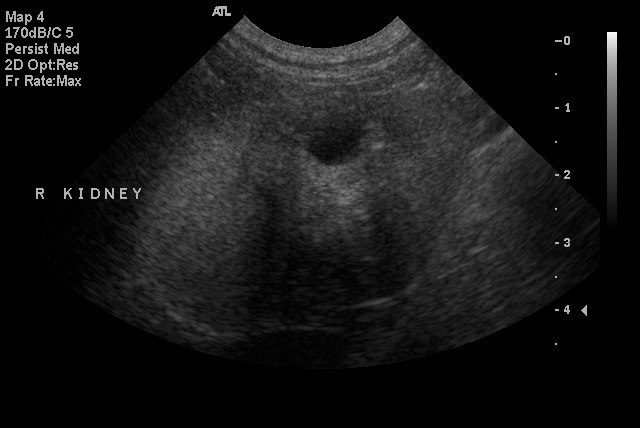

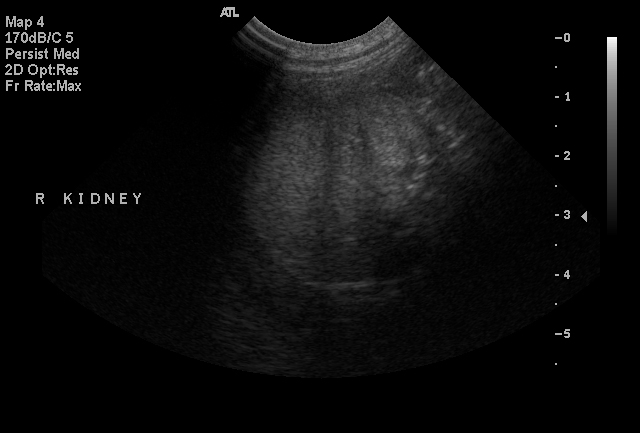

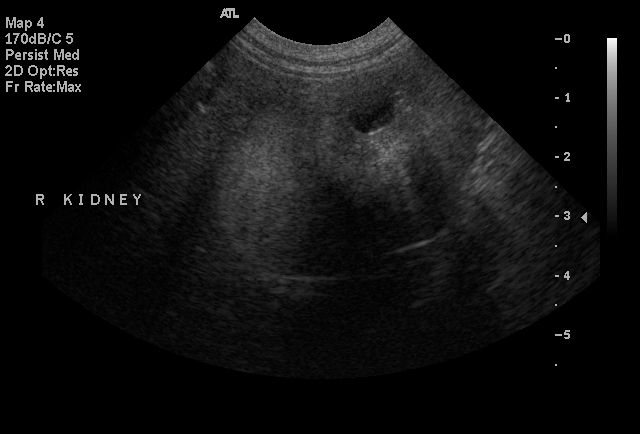

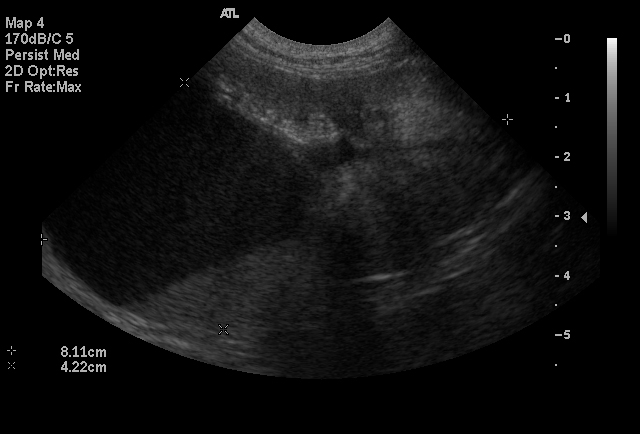

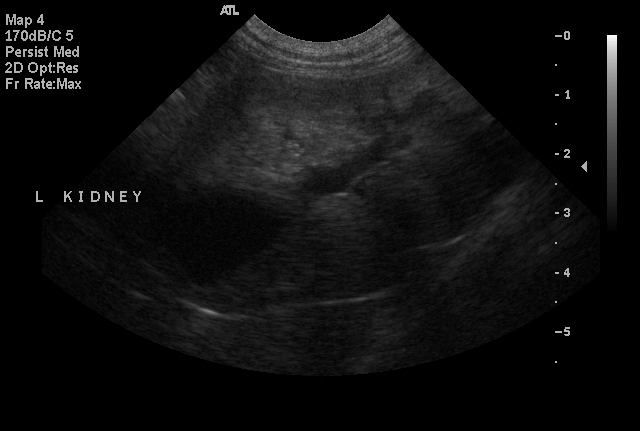

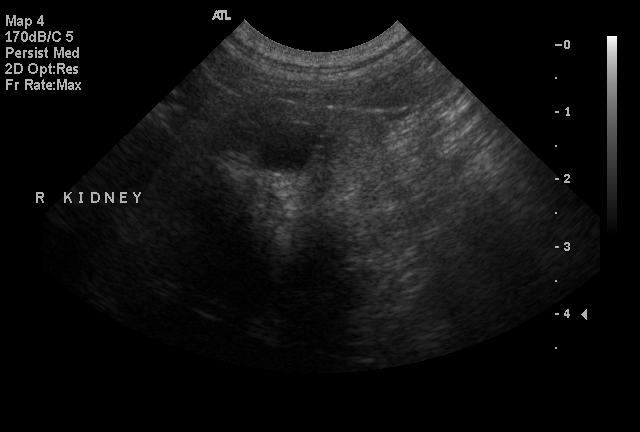

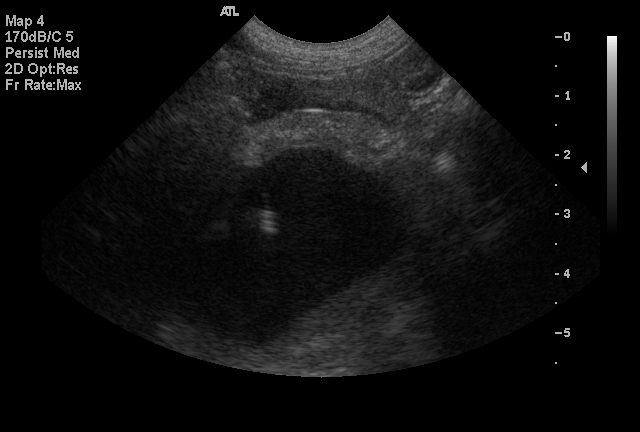

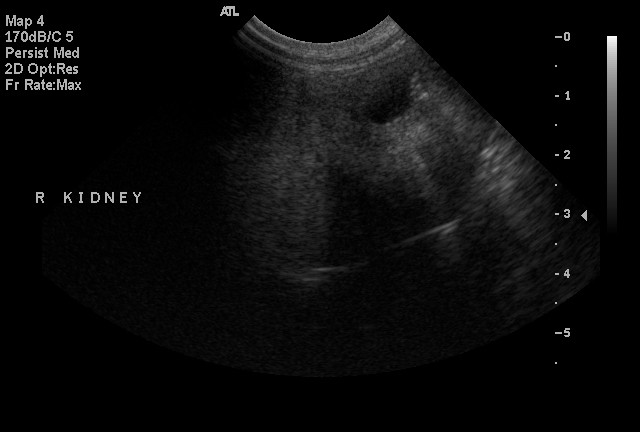

There is a large, thick walled cystic structure associated with the cranial pole of the left kidney. This has a large amount of flocculent debris within the fluid and layered sediment. The left kidney has a blunted renal papilla and moderate pelvic dilation. The right kidney is severely misshapen and lobular with a cortical cyst, no identifiable medullary cavity and poor definition of the papilla. The urinary bladder wall is mildly thickened and irregular with a large amount of flocculent debris within the urine.

Show diagnosis…

Diagnosis

  • Bilateral renal changes consistent with renal dysplasia and/or chronic pyelonephritis
  • The thick walled cystic structure associated with the cranial pole of the left kidney likely represents an abscess. Enterobacter was cultured.
  • Chronic cystitis

Show discussion…

Discussion

The cyst in the left kidney was drained using percutaneous ultrasound guidance. The fluid within it was similar to urine, and large numbers of enterobacter cloacae were cultured.
Renal dysplasia covers a wide group of genetic and congenital malformations of the kidney, some of which are breed related. On ultrasound, there may be a combination of altered architecture with more chronic consequences of renal disease. Kidneys may have altered size and shape, a radiating or striated pattern in the medulla, and poor corticomedullary distinction. This dog had secondary pyelonephritis and cystitis as well as primary renal dysplasia.

  1. Kolbjornsen O, Heggelund M, Jansen JH. End-stage kidney disease probably due to reflux nephropathy with segmental hypoplasia (Ask-Upmark kidney) in young Boxer dogs in Norway. A retrospective study. Veterinary Pathology 2008;45:467-474.
  2. Greco DS. Congenital and inherited renal disease of small animals. Veterinary Clinics of North America – Small Animal Practice 2001;31:393-399, viii.
  3. Hoppe A, Karlstam E. Renal dysplasia in boxers and Finnish harriers. Journal of Small Animal Practice 2000;41:422-426.
  4. Felkai C, Voros K, Vrabely T, et al. Ultrasonographic findings of renal dysplasia in cocker spaniels: eight cases. Acta Vet Hung 1997;45:397-408.

Case originally posted on September 18, 2008

Filed Under: Abdomen, Canine, Case of the Day, Ultrasound

Comments

  1. ringo says

    September 18, 2008 at 10:35 am

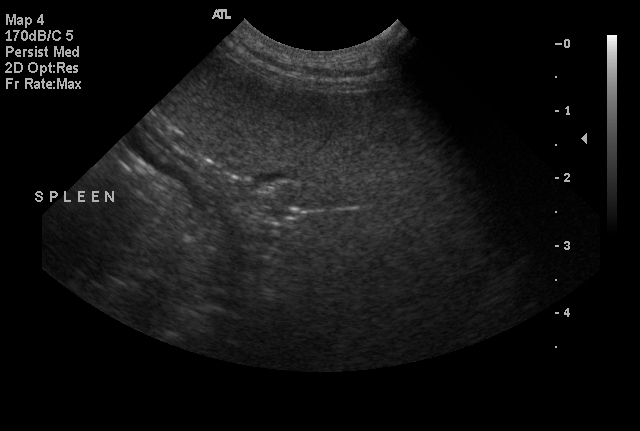

    Both kidneys appear with complete loss of normal echogenicity and echotexure, abnormal shape and cystic components. Large cystic part of the lt kidney cranial pole with debris and thick walls, possibly related with the pelvis. Splenomegaly.
    dd: Bilateral renal tumor (hystiocytoma…), Nephritis with abscessation from systemic illness, cystic renal dysplasia

  2. vet74 says

    September 19, 2008 at 3:10 pm

    Since the hypoechoic area in the cranial pole of the left kidney is not completely unechoic other differntials would be an abscess, a mass or hematoma. This area does contain fluid most likely, since there is a distal acoustic enhancement associated with it.
    Both kidneys have a complete loss of the normal renal architectures, with dilated pelvises.

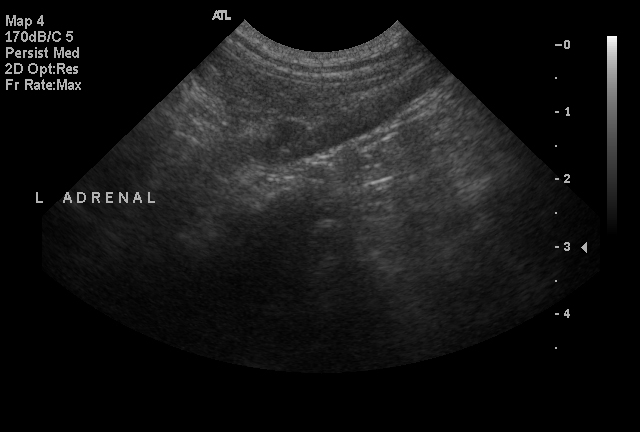

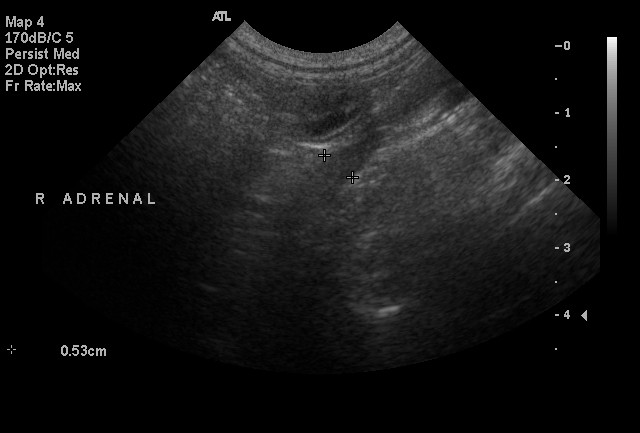

    The liver, spleen, adrenals and kidneys all seem to be hyperechoic.
    I would suspect an infiltrative neoplastic process such as LSA or hystiocytosis. More rare diseases like amyloidosis could also be considered.
    FNAs or biopsies are required for the final diagnosis.

  3. Allison Zwingenberger says

    September 19, 2008 at 5:00 pm

    Right. You’ve both pointed out that there are changes involving both kidneys, pointing to a global renal disease. But, there is a large focal abnormality in the left kidney that may be a second or a different disease process. Thinking of the DAMNIT scheme, what would you rank as your top differentials for the bilateral renal changes?

  4. vet74 says

    September 19, 2008 at 5:13 pm

    Neoplastic is likely (e.g bilateral renal LSA), with a focal necrosis of the L kidney?

  5. vet74 says

    September 19, 2008 at 5:15 pm

    It would also be helpful to know what was the size of these kidneys

  6. Allison Zwingenberger says

    September 19, 2008 at 5:25 pm

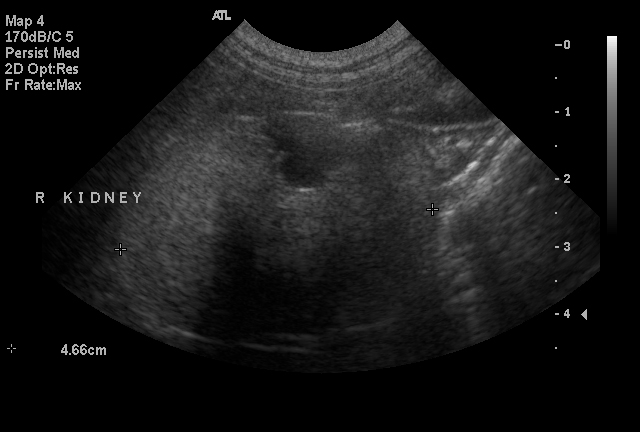

    The left kidney is about 6 cm but is likely distorted by the focal lesion. The right kidney is 4.6 cm in length which I would call small for a Boxer.

  7. borsettoantonella says

    September 20, 2008 at 2:45 am

    I think it could be a Polycystic kidney disease (PKD), a slowly progressive, irreversible, inherited kidney disease that can result in renal failure. It is relatively uncommon in dogs.
    The disorder is often present at birth. Multiple small cysts slowly grow in size, causing the kidney to enlarge dramatically. The cysts replace the normal kidney tissue, while kidney function continuously declines. PKD often progresses to cause clinical signs of kidney failure. This dog has been polyuric and polydipsic since being acquired as an 8 week old puppy.
    Clinical signs of PKD are non-specific and are similar to those seen in dogs with chronic renal failure of any cause. These include depression, decreased appetite or anorexia, excessive drinking, excessive urination, weight loss and sporadic vomiting.

  8. ringo says

    September 21, 2008 at 1:57 am

    Polycystic disease as it concerns my experience especially in cats is a progressive proccess of normal parenchymal alternation to thin wall cysts but in this case there is no normal renal parenchyma. The top dd could be: Familial nephropathy/ Renal dysplasia/ CA/ Chronic toxic stimulated nephropathy associated with secondary abscessation. Some echogenic areas in the hepatic parenchyma (polycystemic disease) could bring familial disease such amyloidosis or toxicity first in the dd list.

  9. eastcoastrad says

    September 21, 2008 at 4:36 pm

    I would not consider neoplasia at all in this case. On both sides I see hyperechoic renal cortices, loss of corticomedullary junction definition, dilated pelves and irregularly shaped small kidneys. Cystic structures are also present.Based on appearance and signalment the most likely diagnosis in this case is Boxer Juvenile Nephropathy, a form of Renal dysplasia with pericapsular and interstitial fibrosis, inflammatory cell infiltration, dilated tubules, sclerotic glomeruli and dystrophic calcification, observed in Boxers less than 5 years of age. The clinical presentation and ultrasonography in this case are very typical for this condition, though biopsy is required to establish the diagnosis.

  10. Allison Zwingenberger says

    September 21, 2008 at 5:51 pm

    Great discussion everyone! I think that considering the age and breed of the dog, we can narrow it down to congenital/developmental conditions and then use what we know about breed-related diseases to come to a diagnosis. The cystic structures and perirenal fluid could be considered as degenerative/inflammatory/developmental lesions. Check back on Monday when the answers will be available within the case. Just click on the link in the original post to access it.

    Would you like to see more ultrasound cases? Since this one generated so much interest, let me know what you’d like to see in the Case of the Day.

  11. vet74 says

    September 21, 2008 at 7:17 pm

    It would be nice to see more cases

  12. ringo says

    September 22, 2008 at 12:30 am

    Ultrasound area would be very interesting!

  13. inuk says

    September 29, 2008 at 4:48 am

    Both kidneys are irregular and smaller than normal with increased cortical echogenicity and almost total loss of corticomedullary junction definition. Mild dilatation of the pelvis. Cystic structure (anechoic thin wall) within the parenchyma and one large roundish structure in the cranial pole of left kidney. The structure is fluid filled with a thick wall. The fluid contains a lot of cells. The urine contains lot of cells as well.
    There are very few visible vessels in the liver parenchyma.
    The renal ultrasonography is most consistent with chronic renal failure – probably congenital and than secondary abscess in left kidney pole most likely related to ascending infection (cystitis).
    Polycystic kidney disease is less likely because cysts are quite common in chronic renal failure. And Boxers are known for congenital inherited renal disease (at least in Europe).
