2 year old DSH cat

August 31, 2015 By Allison Zwingenberger

Today’s case is a 2 year old male neutered domestic short hair cat with an acute onset of lameness. Post your findings in the comments.

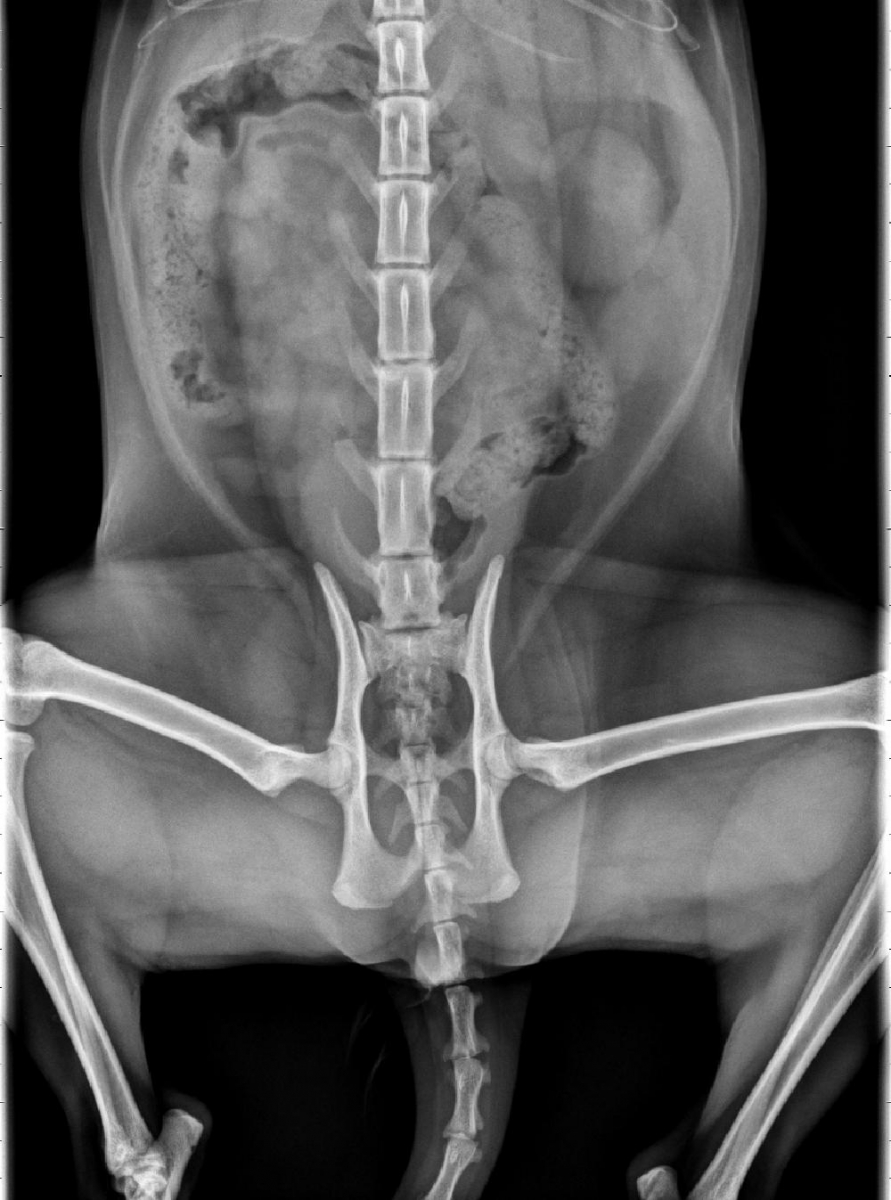

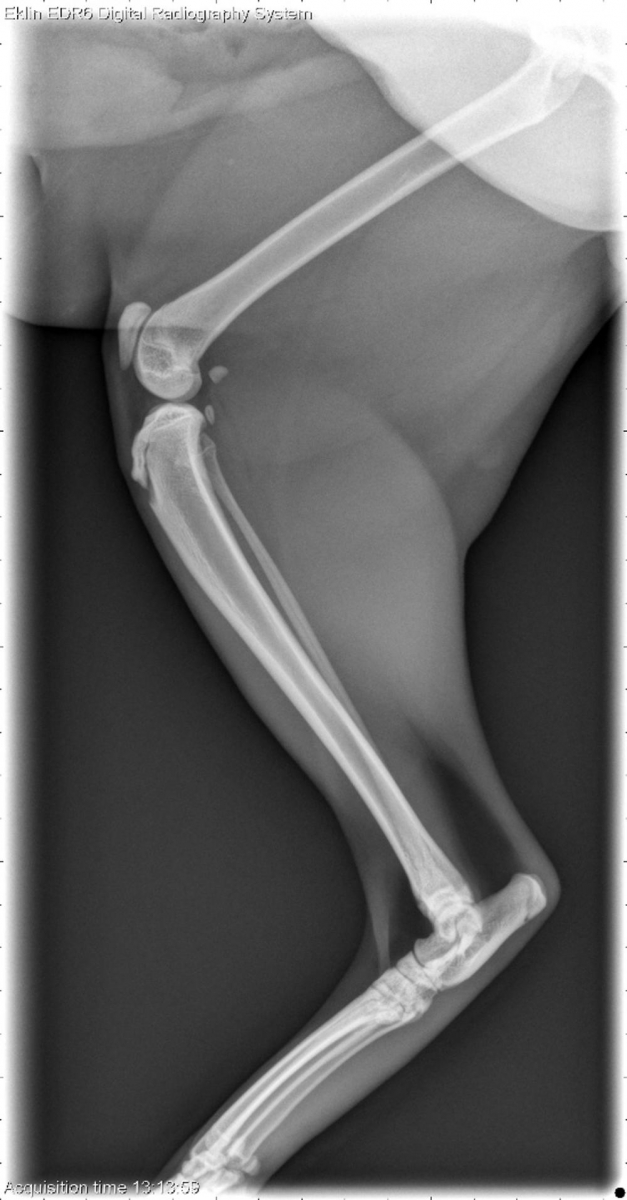

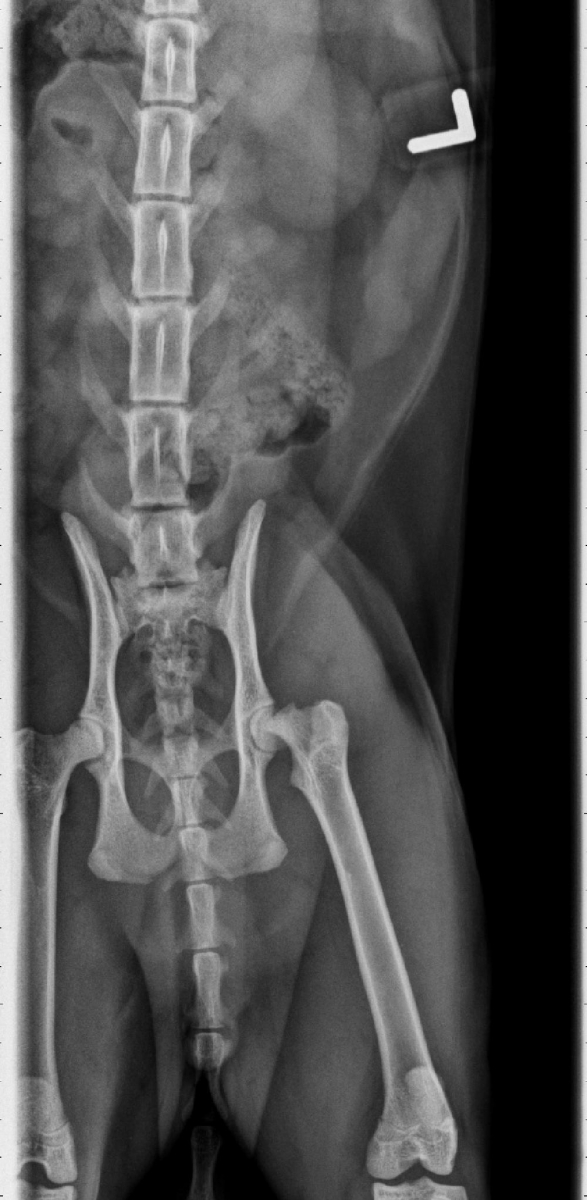

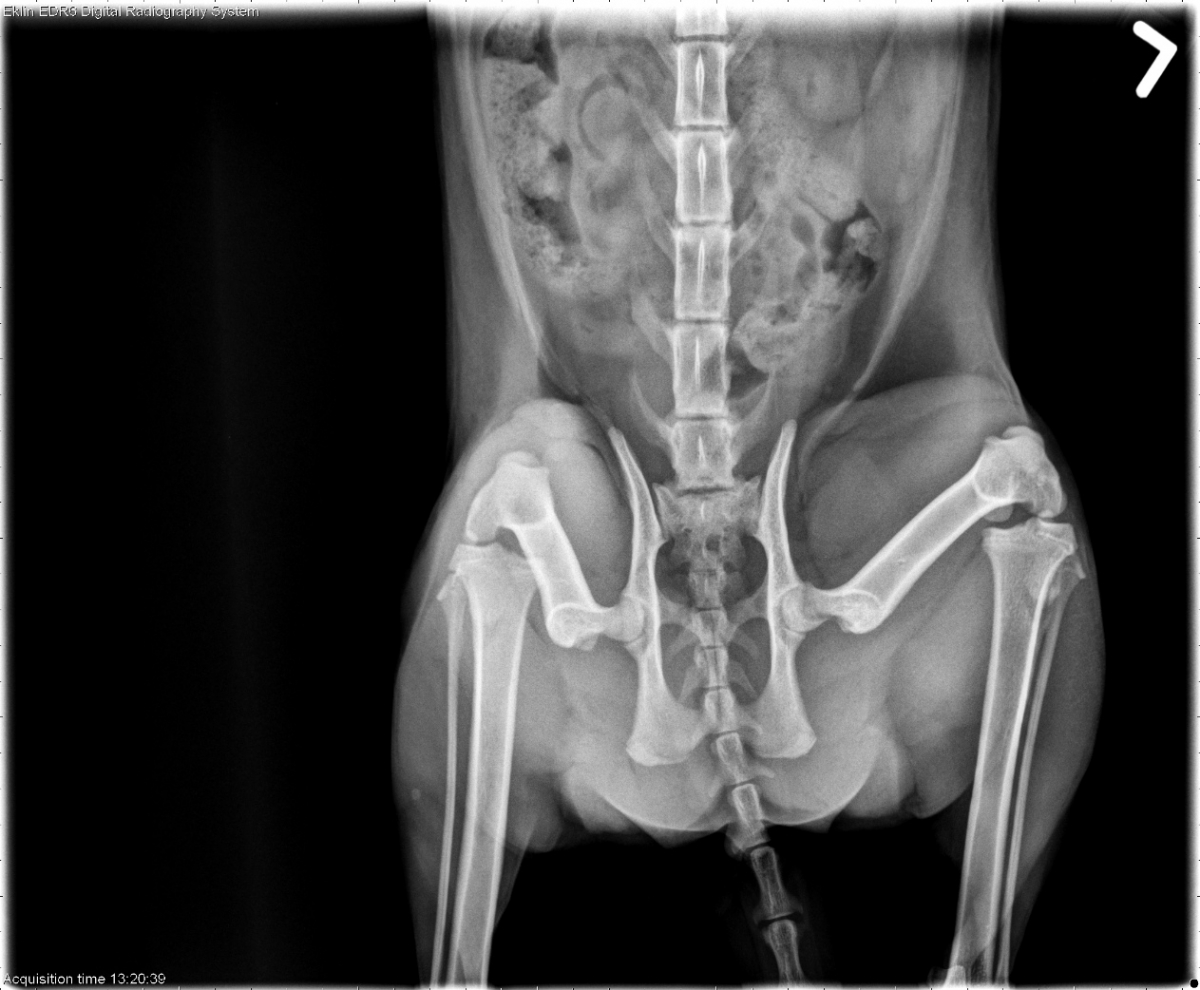

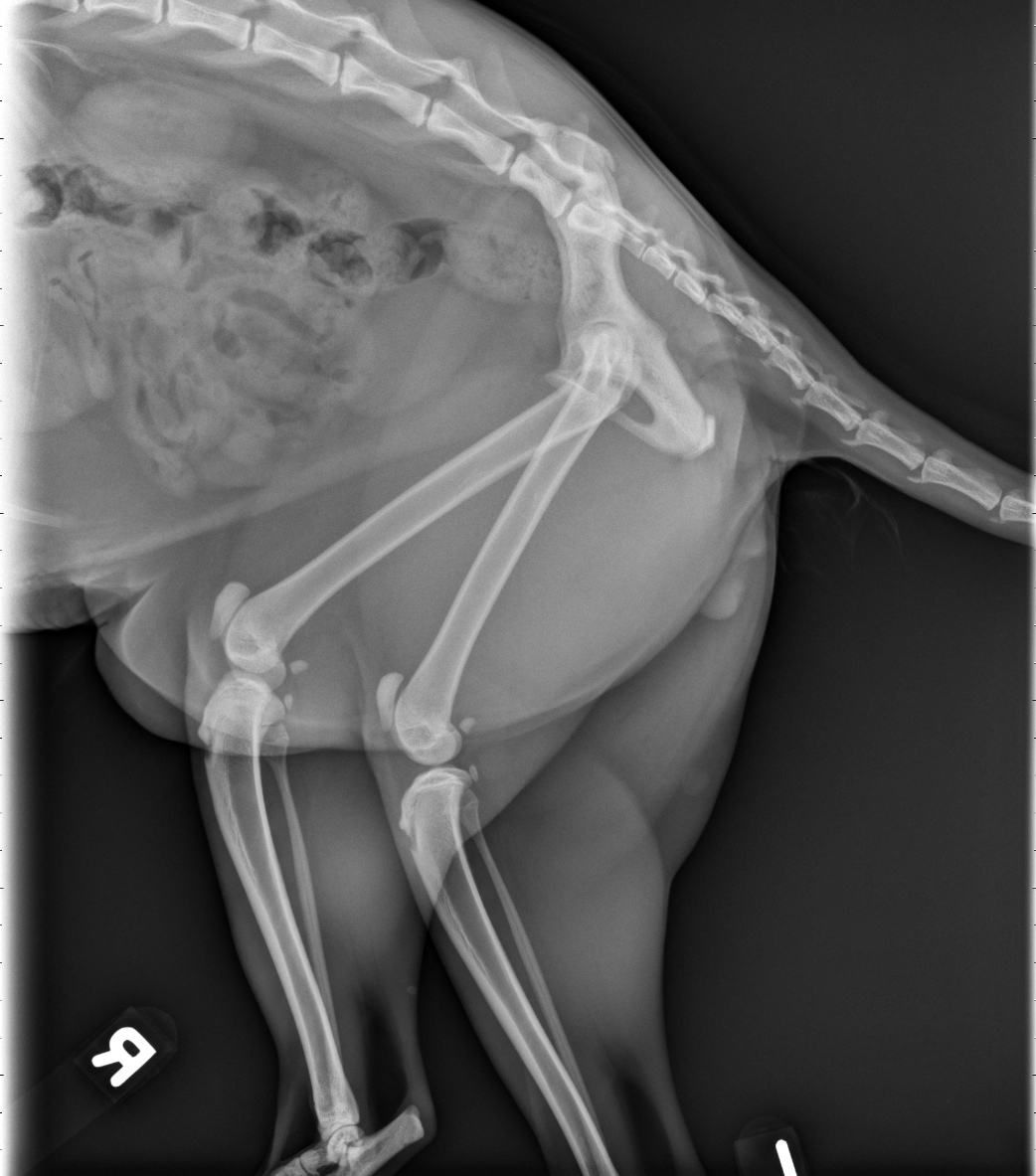

1cod20090528crcd.0001.0001_base
2cod20090528latlh.0001.0001_base
3cod20090528lat.0001
4cod20090528vd.0001
5cod20090528vd2.0001_base
6cod20090528vd3.0001.0001_base

Show findings...

Findings

There is a displaced capital physeal fracture of the left femoral head, with mild cranial displacement of the femoral neck and remainder of the femur in relation to the head on the extended VD projection. On the frog-leg VD projections, there is less pronounced displacement, but a step-defect between the femoral head and neck is still visible. There is disc space narrowing at L4-5 and remodeling of the adjacent endplates particularly the cranial endplate of L5. No abnormalities of the limb are identified. Most of the physes of the pelvic limbs remain at least partially open, including the intact right femoral capital physis.

Show diagnosis…

Diagnosis

  • Left sided capital physeal fracture of the left pelvic limb.
  • Delayed physeal closure of the hind end physes.
  • Disc space narrowing and mild endplate remodeling at L4-5.

Show discussion…

Discussion

This syndrome of delayed physeal closure occurs in two year old male neutered cats. They tend to be overweight and present with spontaneous femoral capital physeal fractures. The disease is often bilateral. The physeal cartilage is often abnormal.
When radiographing these cats, it is important to take several v/d projections. In cases where the lesion is not visible on a hip extended view, it may be more obvious on a frog-leg projection.

  • Craig LE. Physeal Dysplasia with Slipped Capital Femoral Epiphysis in 13 Cats. Vet Pathol 2001;38:92-97.
  • McNicholas WT Jr., Wilkens BE, Blevins WE, et al. Spontaneous femoral capital physeal fractures in adult cats: 26 cases (1996-2001). Journal of the American Veterinary Medical Association 2002;221:1731-1736.
  • Queen J, Bennett D, Carmichael S, et al. Femoral neck metaphyseal osteopathy in the cat. Veteribary Record 1998:159-162.
Case originally posted on May 28, 2009

Filed Under: Case of the Day, Feline, Musculoskeletal, Radiographs

Comments

  1. Bagetti says

    May 28, 2009 at 1:29 pm

    Fracture of the left femoral neck.

  2. Vet76 says

    May 28, 2009 at 9:14 pm

    In adition to the previous comment I belive it is important to note the lack of bone fragments as well the possible intact transverse acetabular ligament. I unfortunately do not see digital radiography that often any more but I may think that the pelvic bones as well as the contralateral neck of the femur may be slightly osteopenic. Let me know if it is just effect from the good quality of the digital image?By the way have you guys seen any avascular necrosis of the femoral head in cats? Base on radiographs there was no clear evidence of the joint involved during physical exam was it? any tips in recognizing this prior to radiographs?
    Good case thank you for submiting it

  3. Bagetti says

    May 29, 2009 at 10:39 am

    I recently see a young cat with fracture of the femoral neck (fiseal fracture – Salter Harris type I) with avascular necrosis.

  4. Allison Zwingenberger says

    May 29, 2009 at 2:41 pm

    Good interpretations and questions! This is a type of pathologic fracture where there is an underlying metaphyseal and physeal abnormality. Minor trauma, such as jumping from a low height, can stress the area enough to fracture. I wish the hip-extended v/d were better quality to evaluate the other hip, but it does appear to have some radiolucency as well. This disease tends to be bilateral so you should always check the contralateral limb.

    I have not seen avascular necrosis of the femoral head in cats, but I think that when these physeal fractures are chronic, the femoral head tends to lose its normal shape. This cat was weight bearing on physical exam and had pain on hind limb extension.

  5. italiangrease says

    May 30, 2009 at 4:32 pm

    this is the typical signalment (male, 2 years) of a cat that was neutered way too young and as a result got delayed closure of all physes. they reach two years old, get big enough, and fracture the femoral neck without much trauma. the ones i have also have faint physes that are still visible, like the endplates. perhaps the tibia is a bit delayed in this case too? it was mistakenly called metaphyseal osteopathy in some papers. i think a paper in JAVMA set things straight a few years ago. why males? probably because it is easy to neuter them real early (like 1-2 months) at the pound?

    i have never seen avascular necrosis in a cat either.

  6. Bagetti says

    May 31, 2009 at 1:31 pm

    Are we talking about the same thing? What do you mean with avascular necrosis? Legg-Calvé-Perthes disease? I’ve seen a young cat with avascular necrosis secondary to a fiseal trauma of femoral neck.

  7. Vet76 says

    June 4, 2009 at 9:01 pm

    Thanks for your comments. Do you happen to remmember the title of the article in JAVMA?

    • Allison Zwingenberger says

      June 5, 2009 at 1:53 pm

      The article is listed on the references tab in the case presentation.
